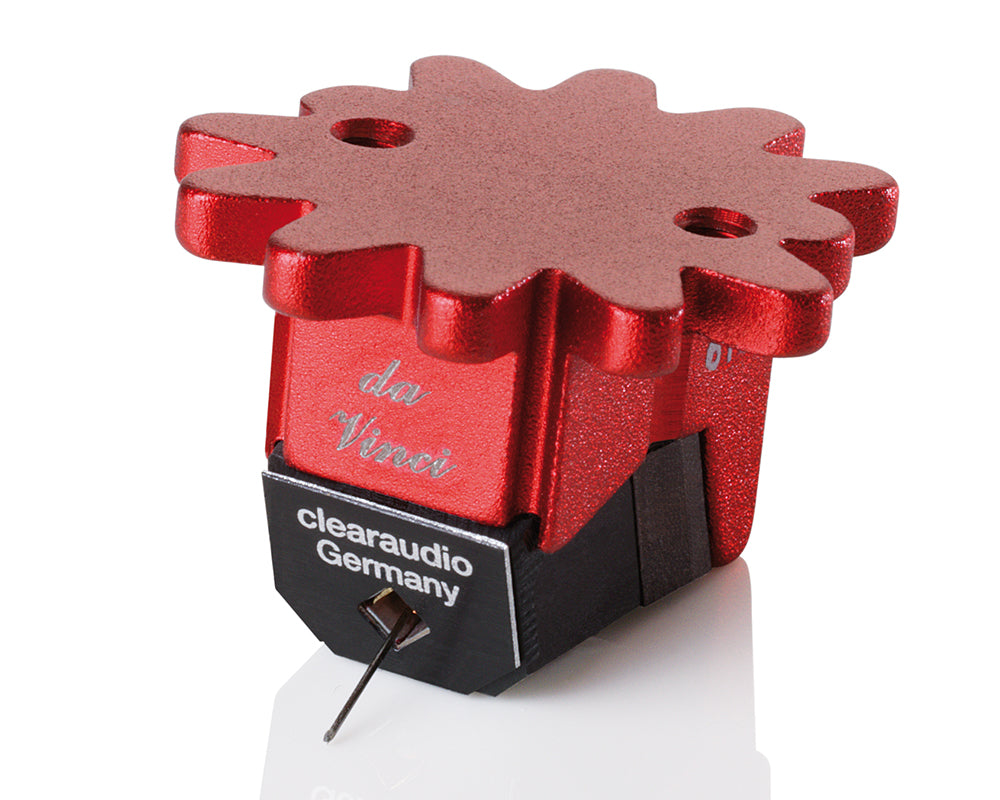

Clearaudio da Vinci v2.1 Cartridge
Clearaudio da Vinci v2.1 Cartridge
Clearaudio da Vinci v2 Cartridge
A tribute to one of the great Renaissance men, the DaVinci MC v2 moving coil was the result of Clearaudio's developmental work on their version 2 series as they explored modern material science. Super neodymium was one special material they used in the generator, creating a ring of 8 magnets with dual 24-karat pure gold air-core coils inside.
For the DaVinci v2.1 body, an aluminum-magnesium alloy with ceramic surface layer was chosen for its lightness, rigidity, and self-damping characteristics. Realizing our twelve-finger design, each finger with a different radius, with this advanced material, provides enhanced low level resolution via its resonance control. The generator of the DaVinci v2.1 MC is mechanically, magnetically and electrically symmetrical, and it uses our clearaudio Prime Line stylus with solid boron rod cantilever.
The DaVinci v2.1 MC’s forward thinking and musical qualities personify Leonardo Da Vinci as it represents an ideal balance in science, invention, art, and humanity.
Frequency Response | 20Hz – 20kHz |
Output Voltage | 0.5 mV |
Channel Separation | 25-30dB |
Channel Balance | < 0.5dB |
Tracking Ability | 80 µm |
Tracking Force | 2.8 g ± 0.2 g |
Cartridge Impedance | 50Ω |
Compliance | 15μ/mN |
Coil Material | 24 carat gold |
Coil Assembly | Absolutely symmetrical design |
Cantilever | Boron |
Stylus | clearaudio Prime Line |
Body | Aluminum with 30 micron ceramic coating |
Weight | 6.8 g |
Warranty | 2 years |
