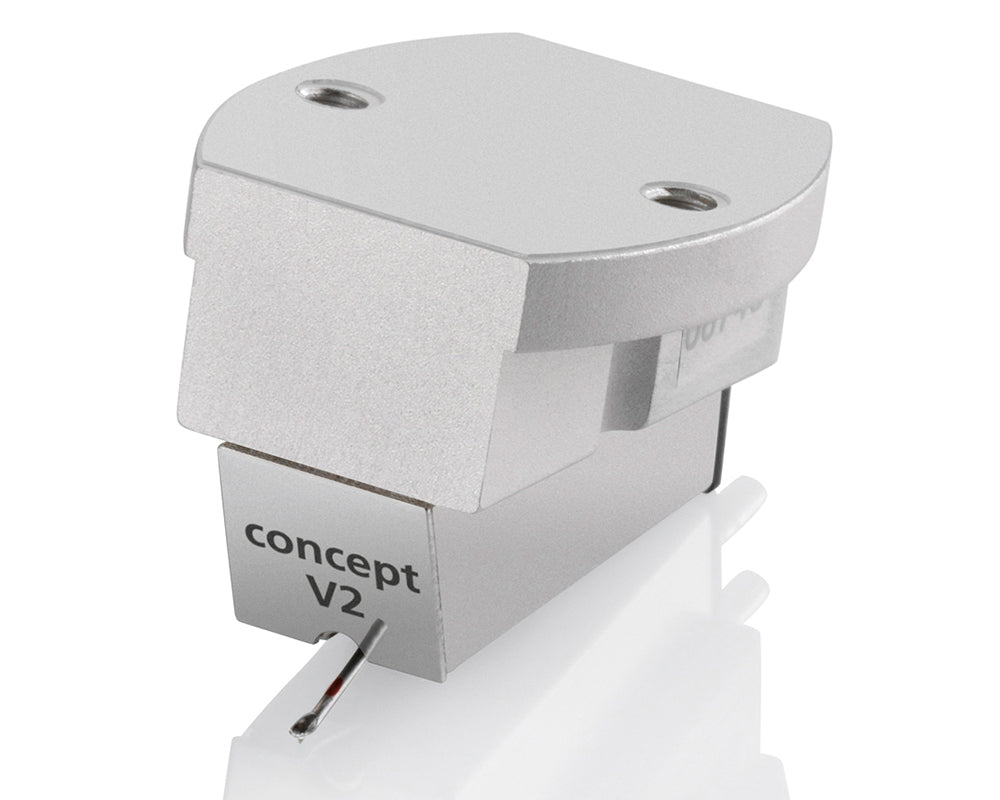

Clearaudio Concept v2 MM Cartridge
Clearaudio Concept v2 MM Cartridge
The Concept v2 Moving Magnet cartridge is the second generation MM version providing increased clarity and dynamics. Clearaudio’s first patents and products in the 1970s were MC cartridges. They applied their expertise in phono transducer design to create a line of MM cartridges to complement their turntables and tonearms
Developed for the Concept turntable, it uses many of the advancements found in the v2 Ebony generator. The Concept v2 MM is a high-output moving magnet cartridge featuring an aluminum body and cantilever with an elliptical stylus. Due to the unique “frictionless magnetic bearing” design of the Concept tonearm, it is available factory pre-installed on the Concept turntable at a special package price.
The Clearaudio Concept v2 MM cartridge is also available separately for use on other brand turntables so you may experience and enjoy the Clearaudio sound.
SPECIFICATIONS
Frequency Response | 20Hz – 20kHz |
Output Voltage | ~3.3mV |
Channel Separation | 20dB |
Channel Balance | 2dB |
Tracking Ability | 80 µm |
Tracking Force | 2.2 g ± 0.3 g |
Coil Impedance | 0.66 kΩ |
Coil Inductance | 0.42 mH |
Load Resistance | 47 kΩ |
Load Capacitance | 100 pF |
Cantilever | Aluminum |
Stylus | Elliptical |
Body | Aluminum |
Weight | 8.6 g ± 0.2 grams |
Warranty | 2 years |
