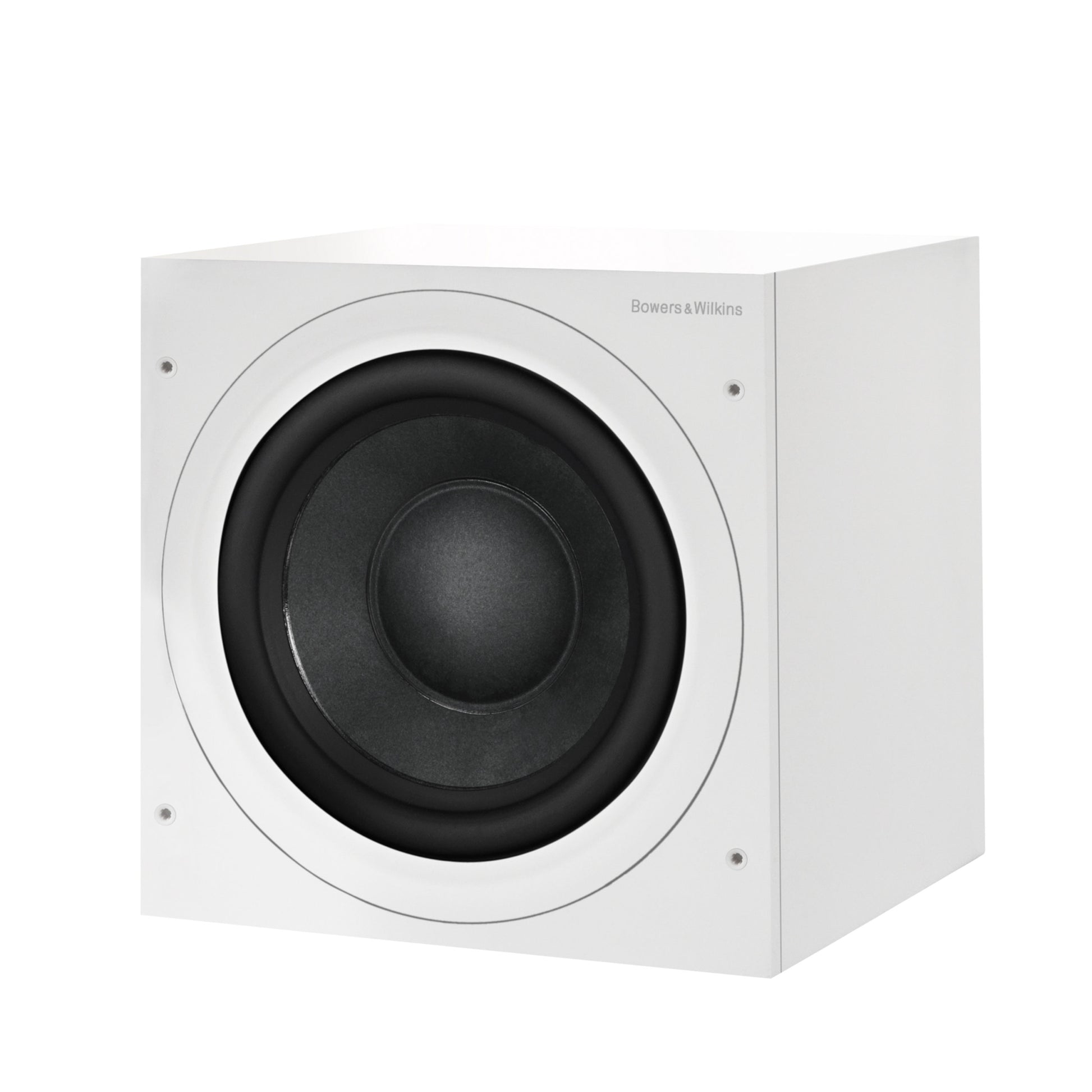

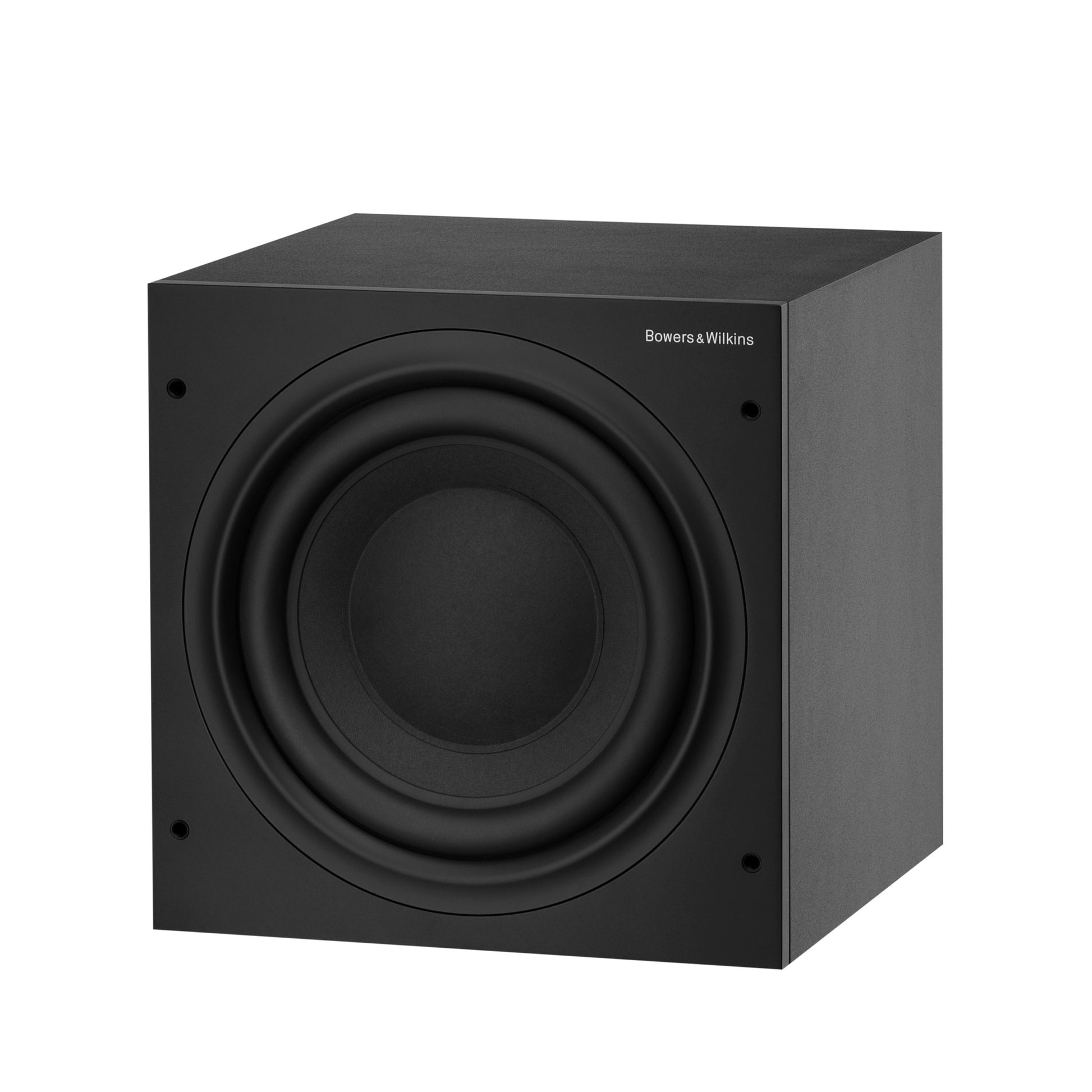

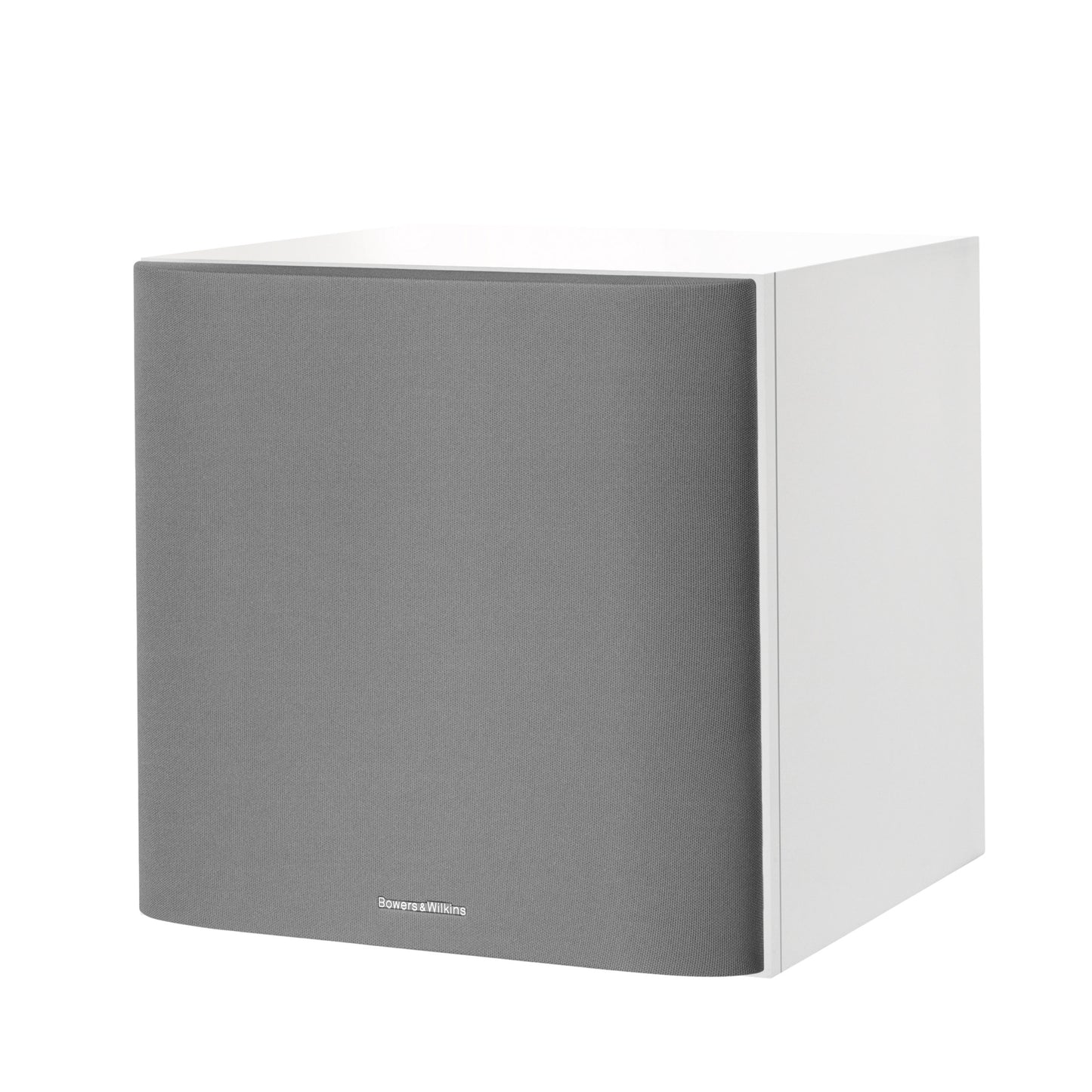

Bowers & Wilkins ASW610
Bowers & Wilkins ASW610
Bowers & Wilkins ASW610
The ASW610 long-throw 250mm driver allows it to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool.
The ASW610 subwoofer presents a very happy medium between the more diminutive ASW608 and the all-out power of the ASW610XP. Its long-throw 250mm driver allows the ASW610 to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool, even when the music or movie action is whipping up a storm.
In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.
Features
Input level (line in)
Input level (speaker in)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Description
Active closed-box subwoofer system
Drive unit
ø250mm (10 in) paper / Aramid fiber cone long-throw
Frequency range
-6dB at 20Hz and 25 / 140Hz adjustable (EQ at A)
Frequency response
±3dB 27Hz – 40 / 140Hz adjustable (EQ at A)
Bass extension
-6dB at 20Hz (position A)
-6dB at 25Hz (position B)
-6dB at 30Hz (position C)
Power output
200W
Rated power consumption
40W / 0.5W standby
Input impedance
33kΩ
Signal / noise
>90dB
Inputs
Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
Dimensions
Height: 310mm (12.2 in) not including feet or spikes
322mm (12.7in) including feet
338mm (13.3in) including spikes
Width: 310mm (12.2 in)
Depth: 347mm (13.66in) not including grilles
375mm (14.8 in) including grilles and controls
Net weight
12.5kg (27.6 lb)
Cabinet finishes
Black
White
Grille finishes
Black
Grey
